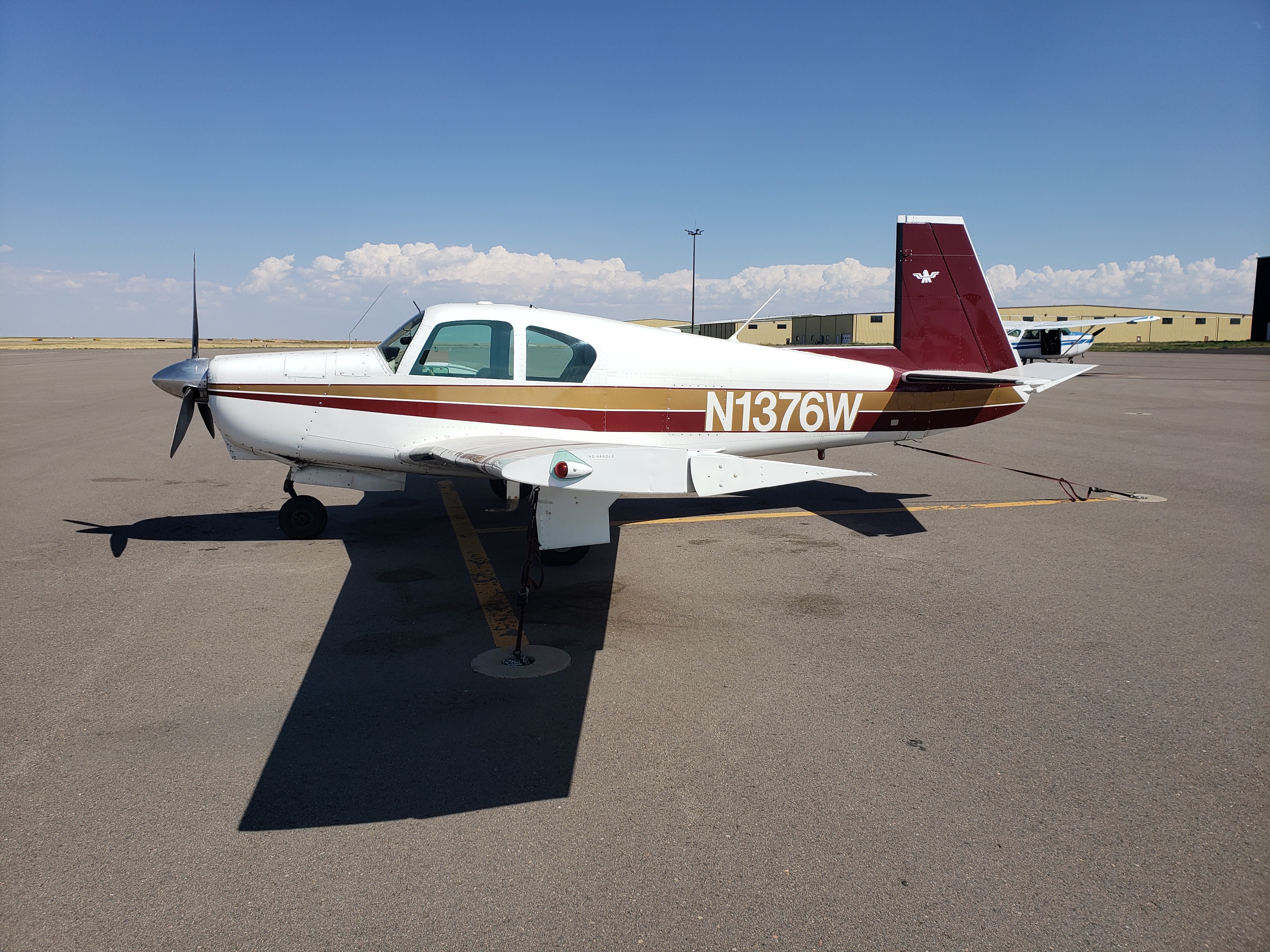

A recent addition, this very nice Mooney C-model can be used for your complex and cross-country needs.
Featuring low wings and retractable landing gear, it is available for all members to train in with our CFI staff, and is also available for rental to those members who have completed checkout with the appropriate endorsements.
Come get your checkout and get flying in this great plane!
PRICING
| Members | $142.00 per hour (wet) |
AVIONICS
| GPS | Garmin 430 |
| Avionics |
PERFORMANCE
Fluid Capacities
| Fuel | 54 Total Gallons, 52 Usable Gallons |
| Oil | 8 Quarts |
Engine, Electrical, and Wing Span
| Engine(s) Type | Lycoming O-360-A1D, 180 BHP @ 2700 RPM |
| Single or Multi Engine | Single Engine |
| Thrust Provided By | 74 Inch Constant-Speed Propeller |
| Electrical System | 14 Volt System with Generator |
| Wing Span | 35 Feet |
| Landing Gear | Retractable |
Speeds
| Maxium At Sea Level | 172 Knots |
| Vne (Never Exceed) | 189 KIAS |
| Vno (Max Structural Cruising) | 150 KIAS |
| Vx (Best Angle Of Climb) | 80 Knots |
| Vy (Best Rate Of Climb) | 100 Knots |
Cruise
| Range - 75% Power at 10,000 Feet | 912 Nautical Miles (estimated; 52 gallons usable fuel) |
| Time - 75% Power at 10,000 Feet | 5.75 Hours (estimated; 52 gallons usable fuel) |
| Maximum Range - 10,000 Feet | 1031 Nautical Miles (estimated; 52 gallons usable fuel) |
| Maximum Time - 10,000 Feet | 8.4 Hours (estimated; 52 gallons usable fuel) |
Rate of Climb
| Sea Level | 800 Feet Per Minute |
Ground Roll Distances
| Takeoff | 815 Feet |
| Landing | 640 Feet |
Stall Speeds
| Vs0 (Flaps Up, Power Off) |
67 Knots |
| Vs1 (Flaps Down, Power Off) | 57 Knots |
Service Ceiling
| Service Ceiling | 17,500 Feet MSL |
Weights
| Maximum Ramp Weight | 2575 Pounds |
| Maximum Takeoff Weight | 2575 Pounds |
| Maximum Landing Weight | 2575 Pounds |
| Standard Empty Weight | 1565 Pounds |
| Maximum Useful Load | 1009 Pounds |
| Baggage Allowance | 120 Pounds |
Documentation
| The documentation provided below may be from a third-party or may not be up to date - please use caution if using it for flight planning. | |
| Pilot Operating Handbook | https://www.frontrangeflightschool.com/wp-content/uploads/2023/03/mark_21.pdf |
| Additional Documentation | https://www.frontrangeflightschool.com/wp-content/uploads/2023/01/Mooney-M20C-Checklist.pdf |
Disclaimer: Information on this site may not be accurate or current and is not valid for flight planning or any other aircraft operations. No warranty of fitness for any purpose is made or implied. Flight planning or any other aircraft operations should only be done using official technical information provided by the manufacturer or FAA.
